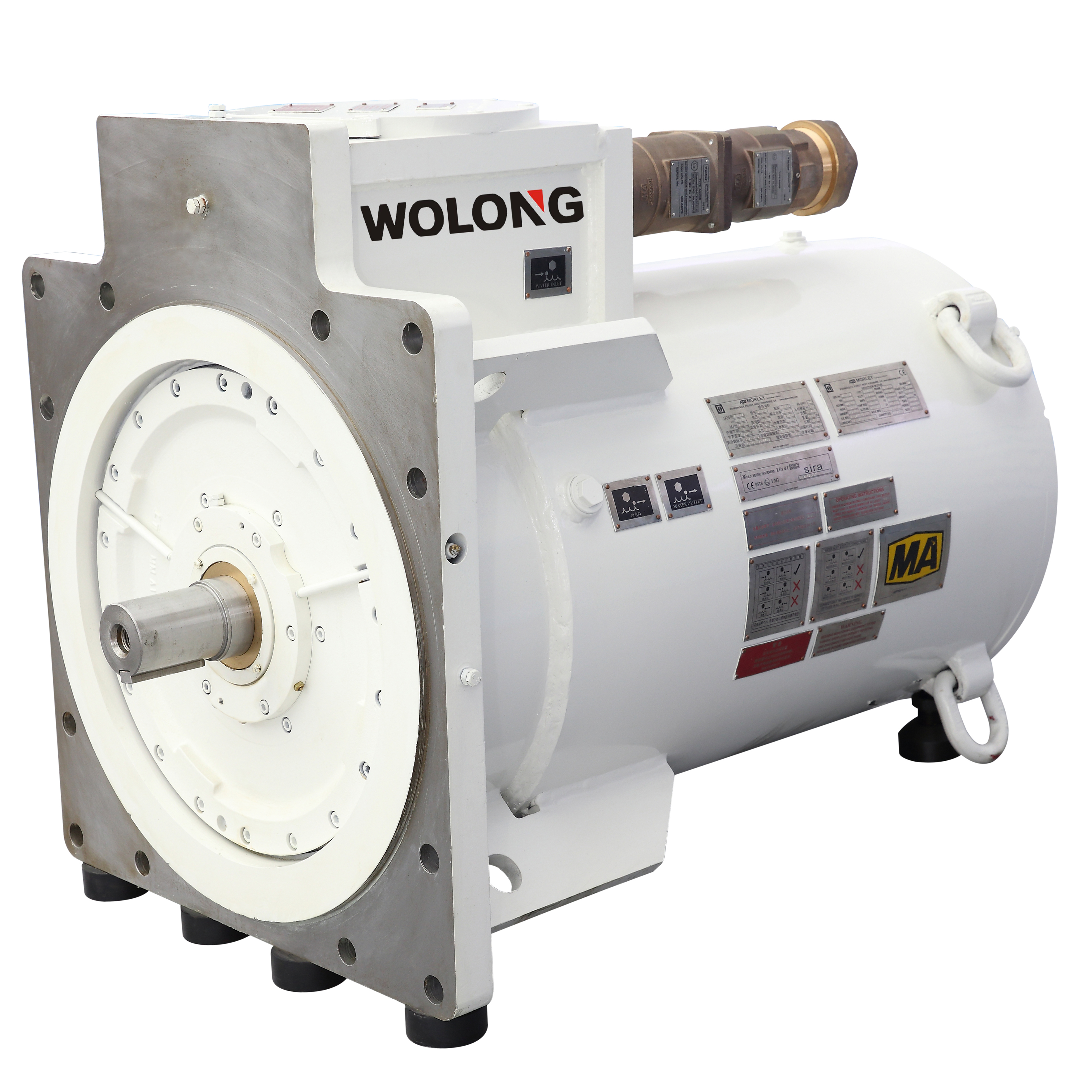

YBS/YBSSS/YBSD Coal mine conveyor motor

Power: 4~1600kWFrequency: 50Hz/60HzSpeed：500~1500rpmVoltage: 380V~3300VProtection grade: IP55Cooling method: IC411 YBS, YBSS, and YBSD series conveyors explosion proof three-phase asynchronous mo......

在線咨詢全國(guó)熱線
13903777332

產(chǎn)品簡(jiǎn)介 / PRODUCT INTRODUCTION


Power: 4~1600kW

Frequency: 50Hz/60Hz

Speed：500~1500rpm

Voltage: 380V~3300V

Protection grade: IP55

Cooling method: IC411

YBS, YBSS, and YBSD series conveyors explosion proof three-phase asynchronous motors are special motors for driving bendable scraper conveyors, belt conveyors or other equipment in coal mines. The explosion-proof performance of the motor is in accordance with GB3836.1-2010 "Explosive Atmosphere Part 1: General Requirements for Equipment" and GB3836.2-2010 "Explosive Atmosphere Part 2: Equipment Protected by Flameproof Enclosure "d"". Its explosion-proof mark is "Ex d I Mb" ("ExdI"-before 2010). It is suitable for the place where the explosive gas mixture of methane or coal dust exists.
