Frame size: 315~630.
Rated voltage: 6000~10000V.
Rated frequency: 50Hz, 60Hz.
Rated power: see type spectrum 11~14.
Number of poles: 2~20P.
Thermal rating: 155(F).
Temperature rise limit: 80K (Class B).
Efficiency: Level 2 energy efficiency, in line with the energy efficiency level 2 of GB30254-2013 "Energy Efficiency Limits and Energy Efficiency Levels of High Voltage Three-phase Cage Asynchronous Motors".
Cooling method: see Table 2.
Installation method: IMB3 (also can be made into IMB35, IMV1).
Protection class: See Table 2.
Working system: S1.
Ambient air temperature: -15℃～+40℃.
Altitude: ≤1000mm.
Indoor (standard configuration) optional: outdoor (W), outdoor medium corrosion resistance (WF1), outdoor strong corrosion resistance (WF2), indoor medium corrosion resistance (F1), indoor strong corrosion resistance (F2), wet Tropical (TH), Tropical Dry (TA), Tropical Outdoors Wet (THW), Tropical Outdoors Dry (TAW).

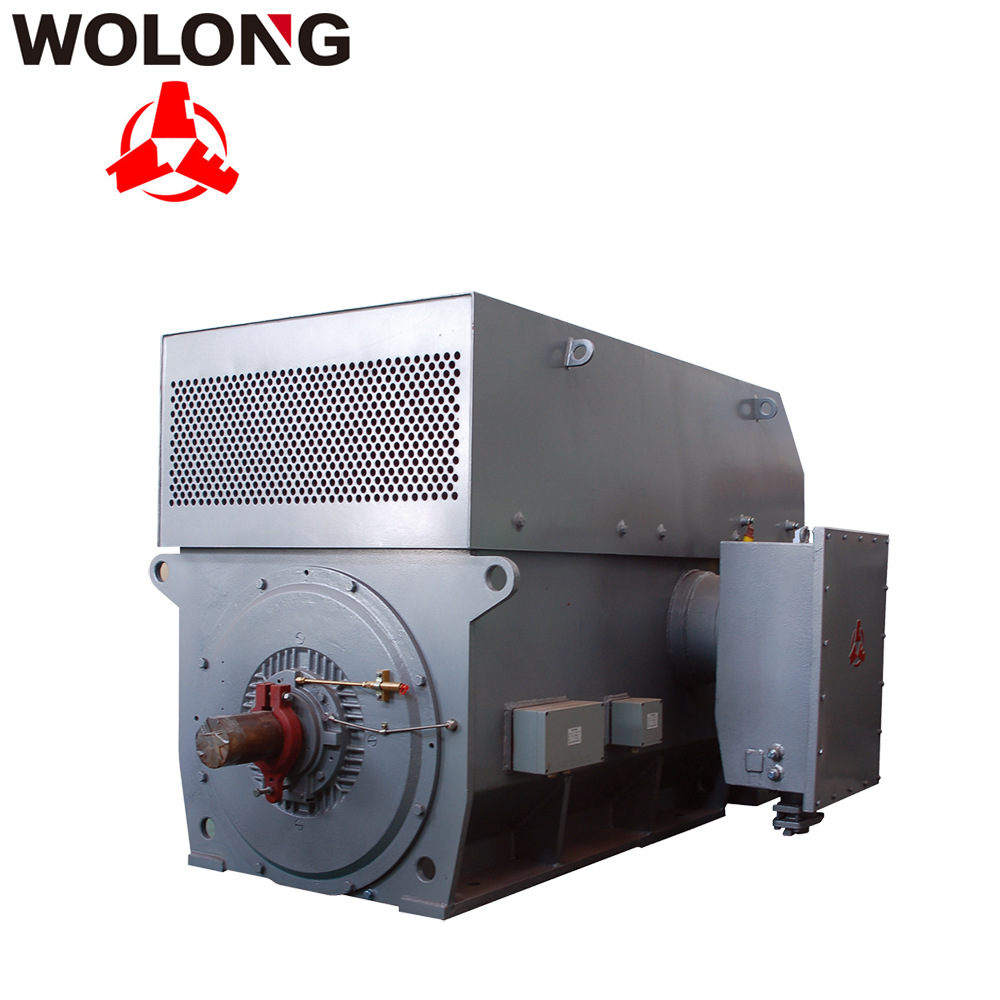

      YXKK, YXKS, YX series high-efficiency high-voltage three-phase asynchronous motors (frame size 315~630) (hereinafter referred to as motors) are new generation high-efficiency motors developed in combination with the company's long-term and stable high-voltage three-phase asynchronous motor series design and manufacturing experience. Products are the most suitable high-quality and cost-effective motors that our company provides for you in various fields.

     This series of motors is high-efficiency, energy-saving, and environmentally friendly. It has the characteristics of lower center height, higher power, higher efficiency, lower noise, safe and reliable operation, and convenient use and maintenance. It is suitable for driving various fans, compressors, water pumps, cutting machinery, transportation machinery, general machinery and other mechanical equipment, and is used as the driving force in various working conditions such as mines, steel, machinery, petroleum, chemical industry, and power stations. Regardless of indoor or outdoor, plateau climate or hot and humid climate, this series of high-voltage three-phase asynchronous motors can always provide superior driving force, and have won the trust and praise of users.
